Surgical & Orthopedic Solutions
Precision-engineered biocompatible implants and specialized instrumentation for bone fixation, wound closure, and complex orthopedic procedures.
Product Range
Surgical & Orthopedic Portfolio
From precision-ground surgical needles to titanium bone plates — engineered to exacting standards for demanding clinical environments.

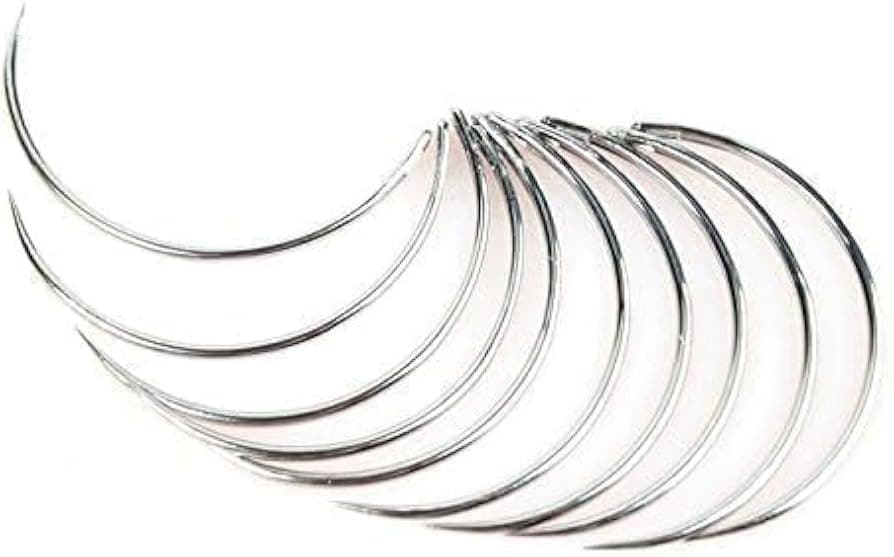

Surgical Curved Needles
Premium-grade surgical needles in all standard circle curvatures. Manufactured from high-tensile stainless steel with precision-ground points for consistent penetration force and knot security.
- Curvatures: 1/4 circle · 3/8 circle · 1/2 circle · 5/8 circle
- Point types: Taper Point (viscera), Reverse Cutting (tough tissue), Blunt Point (friable tissue)
- Sizes: No. 1 through No. 5 within each curvature
- Material: high-tensile, corrosion-resistant stainless steel
- Eye configurations: closed eye, French (split) eye
- Available swaged (pre-attached suture) and non-swaged

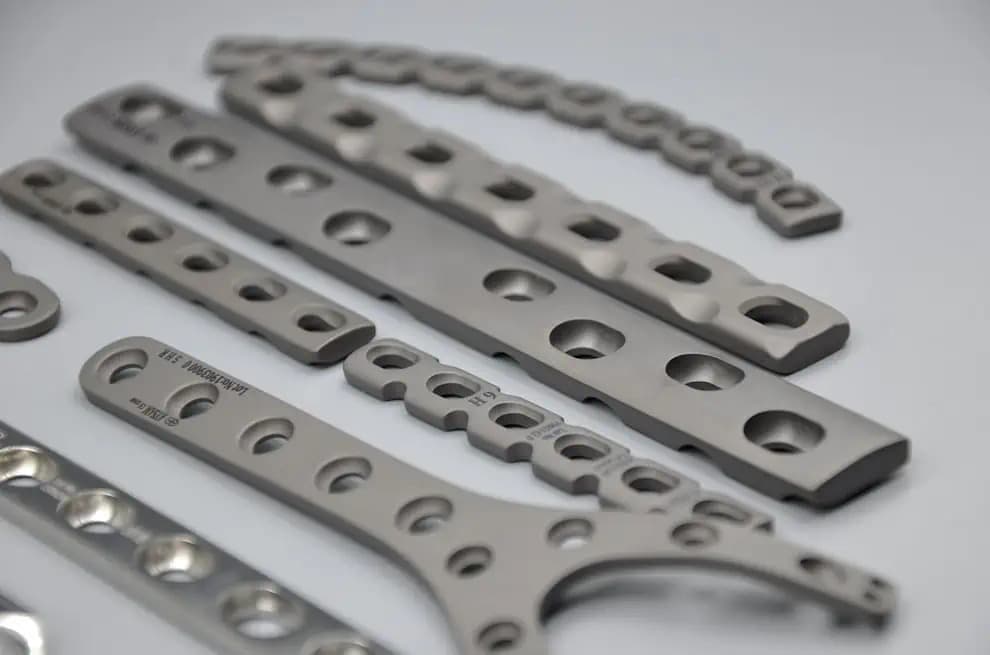

Bone Plates
Precision-engineered orthopedic bone plates for fracture fixation and reconstruction. Manufactured from medical-grade titanium (Ti-6Al-4V Grade 5) and AISI 304 stainless steel with full biocompatibility certification.
- Materials: Titanium Grade 5 (Ti-6Al-4V) and AISI 304 Stainless Steel
- Plate profiles: mini fragment, small fragment, large fragment
- DCP (Dynamic Compression Plate) and reconstruction plate options
- Locking and non-locking hole configurations
- Full biocompatibility — ASTM F136 / ISO 5832-3 compliant
- Available in straight, curved, L, T, and Y plate configurations

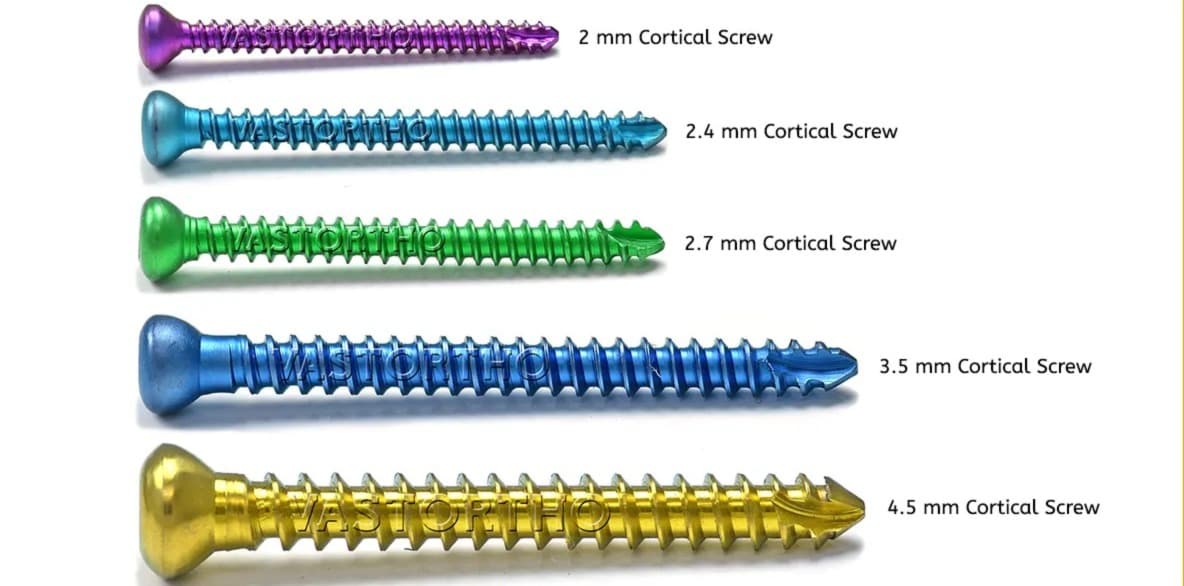

Cortical Screws
High-tensile cortical bone screws for diaphyseal bone fixation. Available in titanium and stainless steel in multiple diameters, with full and partial thread configurations to suit different fixation requirements.
- Diameter range: 2.0 mm · 2.4 mm · 2.7 mm · 3.5 mm · 4.5 mm
- Thread types: cortical (full thread) and cancellous (partial thread)
- Self-tapping and non-self-tapping variants available
- Materials: Titanium Grade 5 and AISI 304 Stainless Steel
- Head types: hex drive, Torx drive, cruciform
- Supplied sterile (individual peel-pack) or non-sterile (bulk)

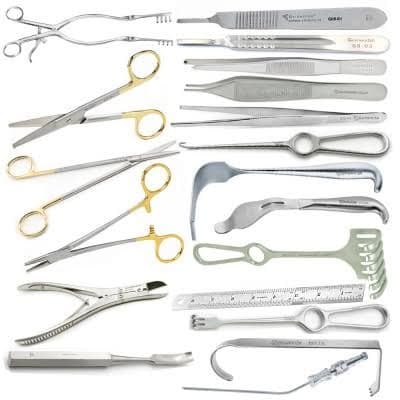

Orthopedic Instruments
Heavy-duty reusable surgical instruments manufactured from surgical-grade stainless steel. Designed for bone fixation procedures, fracture reduction, and soft-tissue manipulation in orthopedic surgery.
- Bone rongeurs: single-action and double-action, straight and curved
- Bone holding forceps and reduction clamps
- Drill bits and guides for plate screw fixation
- Chisels, osteotomes, and periosteal elevators
- Material: AISI 420 / 17-4 PH surgical stainless steel
- Fully reusable, autoclavable to 134°C — supplied individually
Needle Curvature & Screw Specification Guide
| Item | Spec / Size | Primary Application | Notes |
|---|---|---|---|
| 1/4 Circle Needle | Taper Point | Anterior chamber, ophthalmology | Confined spaces |
| 3/8 Circle Needle | Taper Point / Cutting | General soft tissue closure | Most common curvature |
| 1/2 Circle Needle | Reverse Cutting / Blunt | Deep cavity, abdominal wall | Restricted access |
| 5/8 Circle Needle | Reverse Cutting | Urological, pelvic floor | Tight anatomic spaces |
| Bone Screw (Cortical) | 2.0 – 4.5 mm | Diaphyseal bone fixation | SS 304 / Ti Grade 5 |
| Bone Screw (Cancellous) | 4.0 – 6.5 mm | Metaphyseal / epiphyseal | Full & partial thread |
ISO 9001 Certified
All implants and instruments are manufactured under ISO 9001 quality management systems with full audit trails.
Biocompatible Materials
Titanium Grade 5 and AISI 304 SS meet ASTM F136 and ISO 5832 biocompatibility standards.
Instrument Traceability
Reusable instruments come with serial numbers and full sterilization documentation for OR inventory management.
Procure Surgical & Orthopedic Supplies
Speak with our B2B team for implant specifications, volume pricing, and regulatory documentation packages.
